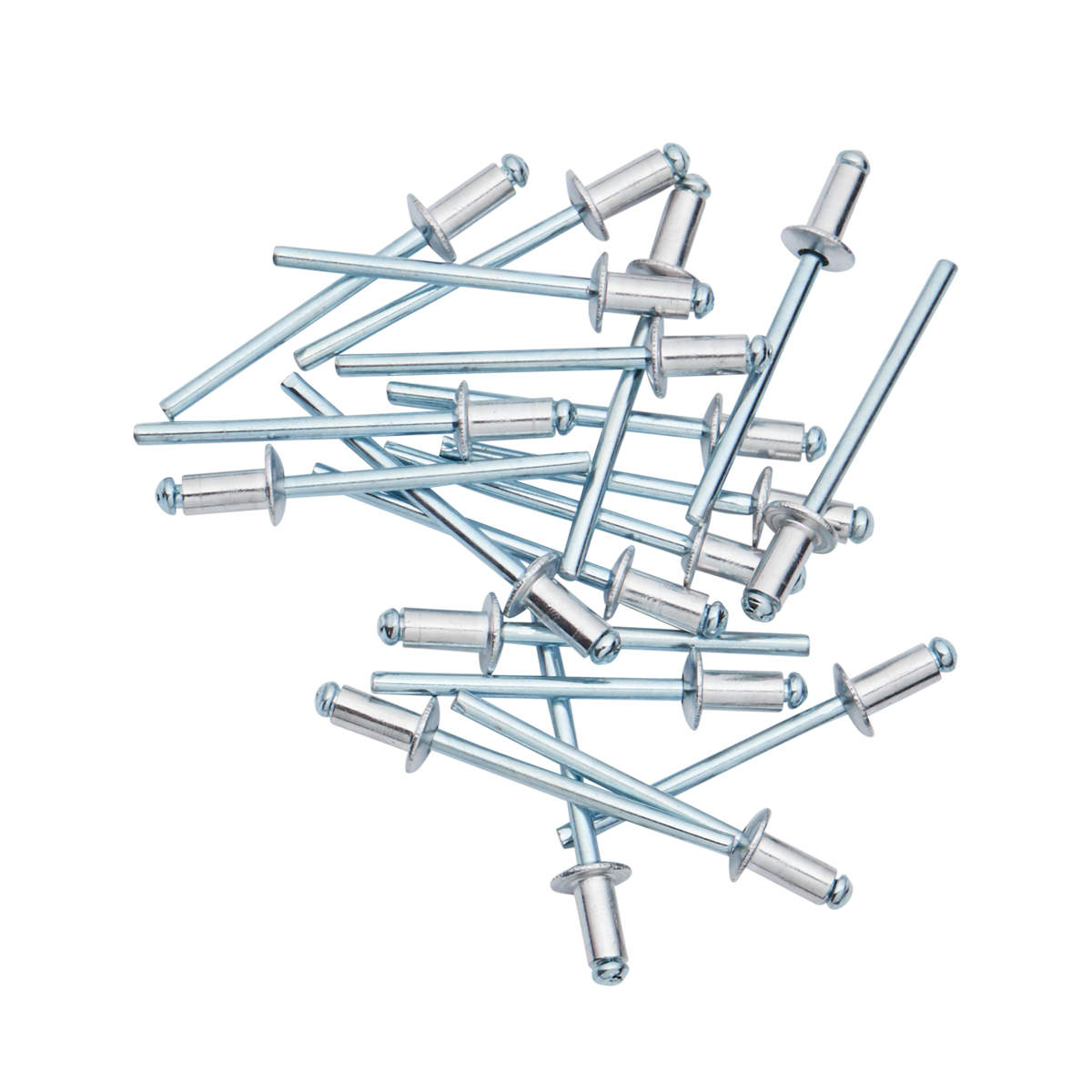

Blindnagler
ISO 14588:2000 / ISO 14589:2000
MaterialE: Aluminium nagle og stålsplint.
MaterialE: Aluminium nagle og stålsplint.
| Str. mm | Vare nr. | Forpk. (antall) | Vekt (g) |
|---|---|---|---|
| 2,4 x 6 | 9670-2406 | 100 | 96 |
| 3,2 x 8 | 9670-3208 | 100 | 110 |
| 3,2 x 10 | 9670-3210 | 100 | 123 |
| 3,2 x 12 | 9670-3212 | 100 | 125 |
| 4,0 x 8 | 9670-4008 | 100 | 163 |
| 4,0 x 10 | 9670-4010 | 100 | 173 |
| 4,0 x 12 | 9670-4012 | 100 | 188 |
| 4,0 x 14 | 9670-4014 | 100 | 210 |
| 4,0 x 16 | 9670-4016 | 100 | 214 |
| 4,8 x 8 | 9670-4808 | 100 | 236 |
| 4,8 x 10 | 9670-4810 | 100 | 249 |
| 4,8 x 12 | 9670-4812 | 100 | 271 |
| 4,8 x 14 | 9670-4814 | 100 | 297 |
| 4,8 x 16 | 9670-4816 | 100 | 303 |
| 4,8 x 20 | 9670-4820 | 100 | 336 |
| 2,4 x 6 | 9671-2406 | 1000 | 673 |
| 3,2 x 8 | 9671-3208 | 1000 | 1079 |
| 3,2 x 10 | 9671-3210 | 1000 | 1094 |
| 3,2 x 12 | 9671-3212 | 1000 | 1199 |
| 4,0 x 10 | 9671-4010 | 1000 | 1764 |
| 4,0 x 12 | 9671-4012 | 1000 | 1992 |
| 4,0 x 14 | 9671-4014 | 1000 | 1868 |
| 4,0 x 16 | 9671-4016 | 500 | 1052 |
| 4,8 x 12 | 9671-4812 | 500 | 1395 |
| 4,8 x 14 | 9671-4814 | 500 | 1539 |
| 4,8 x 16 | 9671-4816 | 500 | 1593 |
| 4,8 x 20 | 9671-4820 | 500 | 1717 |
