3/8” Lange 6-kant piper i mm
ISO 2725-1, DIN 3124
Utførelse: Forkrommet og høyglanspolert. Materiale: Chrome-vanadium stål.
Utførelse: Forkrommet og høyglanspolert. Materiale: Chrome-vanadium stål.

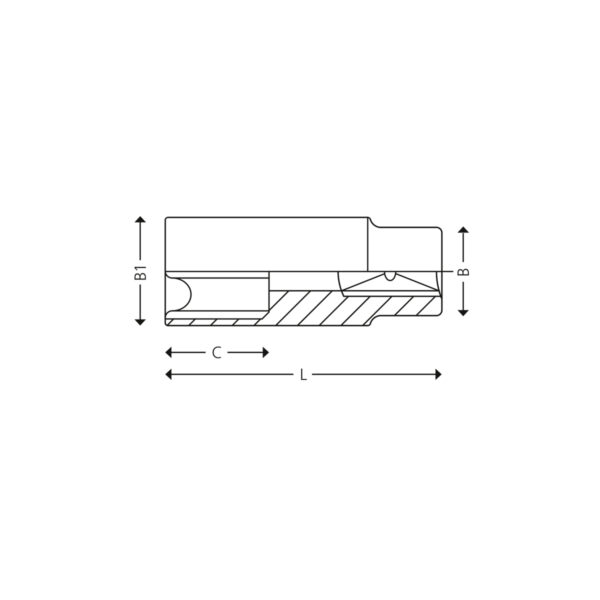

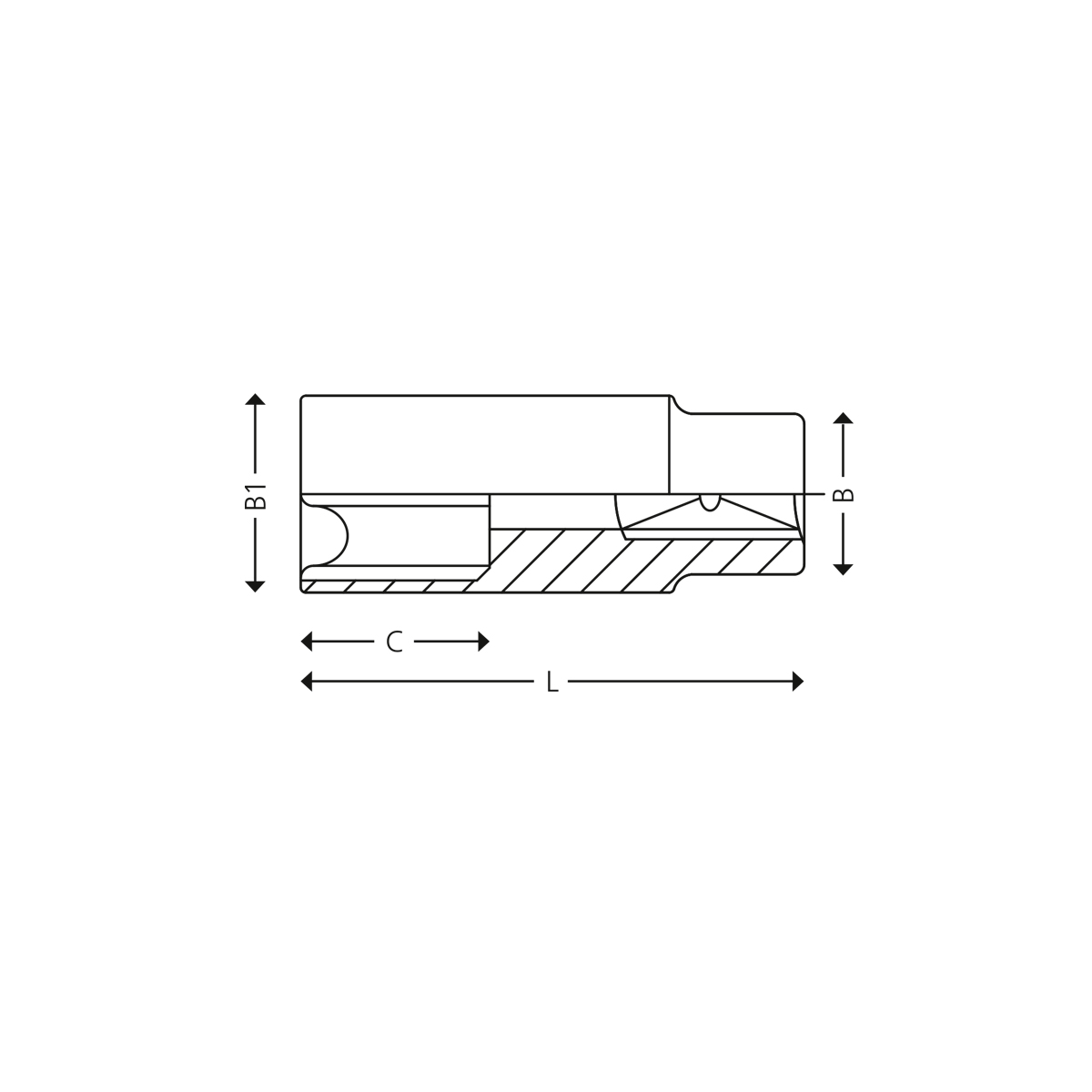

| Str. mm | Vare nr. | B mm | B1 mm | C mm | L mm | Vekt (g) |
|---|---|---|---|---|---|---|
| 8 | 5038-4008 | 17,0 | 11,8 | 9 | 63 | 51 |
| 6 | 5038-4006 | 17,0 | 10,2 | 18 | 63 | 50 |
| 7 | 5038-4007 | 17,0 | 10,5 | 14 | 63 | 50 |
| 9 | 5038-4009 | 17,0 | 13,2 | 9 | 63 | 53 |
| 10 | 5038-4010 | 17,0 | 14,5 | 9 | 63 | 56 |
| 11 | 5038-4011 | 17,0 | 15,7 | 12 | 63 | 62 |
| 12 | 5038-4012 | 16,0 | 17,0 | 12 | 63 | 70 |
| 13 | 5038-4013 | 16,5 | 18,0 | 12 | 63 | 76 |
| 14 | 5038-4014 | 17,0 | 19,6 | 15 | 63 | 86 |
| 15 | 5038-4015 | 18,0 | 20,9 | 15 | 63 | 111 |
| 16 | 5038-4016 | 19,0 | 22,0 | 15 | 63 | 101 |
| 17 | 5038-4017 | 20,0 | 23,4 | 15 | 63 | 122 |
| 18 | 5038-4018 | 21,0 | 24,6 | 18 | 63 | 153 |
| 19 | 5038-4019 | 23,0 | 26,0 | 18 | 63 | 142 |
| 21 | 5038-4021 | 25,0 | 28,0 | 18 | 63 | 160 |
| 22 | 5038-4022 | 26,0 | 29,6 | 21 | 63 | 195 |
