1/2” Lange 6-kant piper i mm
ISO 2725-1, DIN 3124
Utførelse: Forkrommet og høyglanspolert. Materiale: Chrome-vanadium stål.
Utførelse: Forkrommet og høyglanspolert. Materiale: Chrome-vanadium stål.

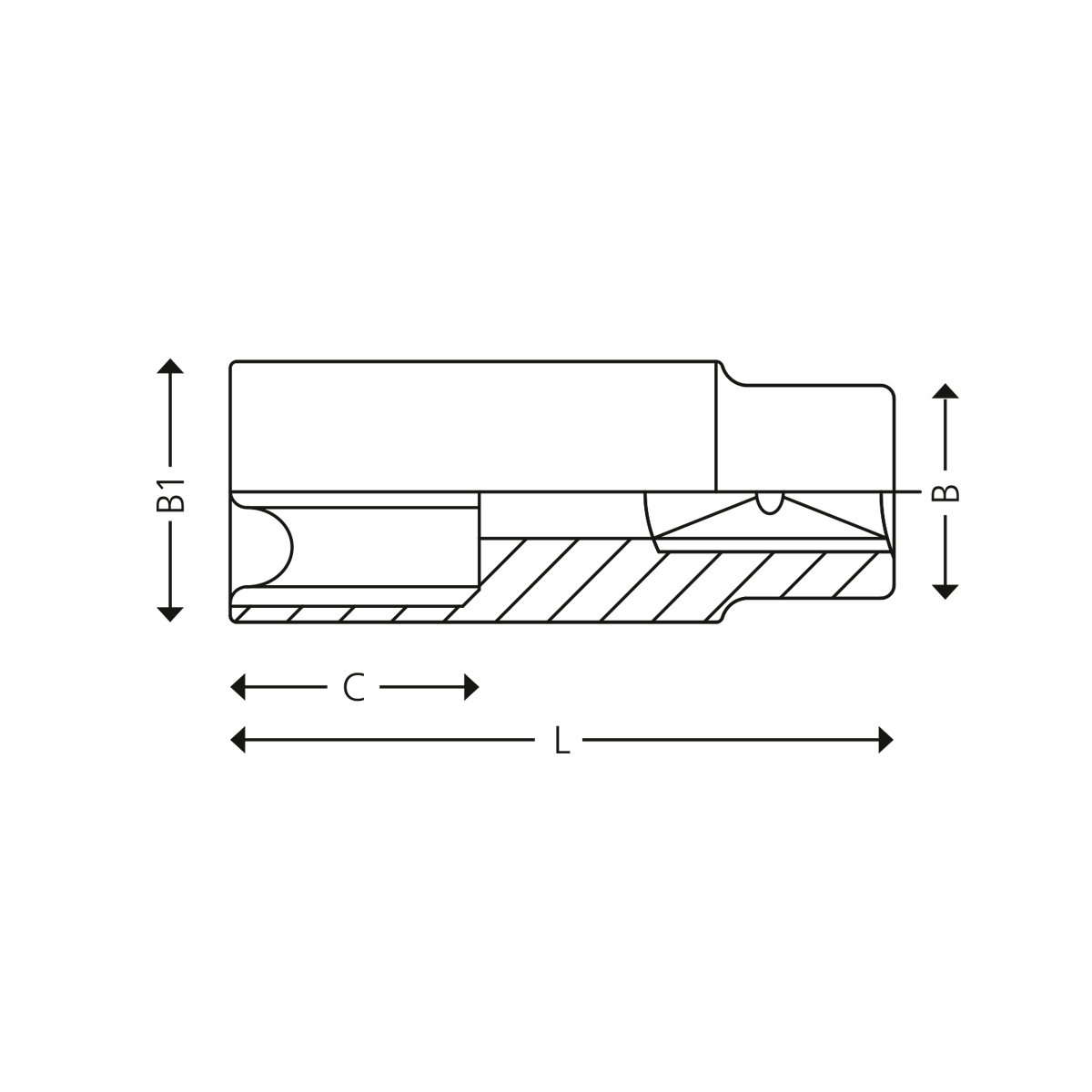

| Str. mm | Vare nr. | B mm | B1 mm | C mm | L mm | Vekt (g) |
|---|---|---|---|---|---|---|
| 10 | 5012-4010 | 22,0 | 15,0 | 12 | 77 | 96 |
| 11 | 5012-4011 | 22,0 | 16,3 | 12 | 77 | 101 |
| 12 | 5012-4012 | 22,0 | 17,6 | 12 | 77 | 107 |
| 13 | 5012-4013 | 22,0 | 18,8 | 12 | 77 | 109 |
| 14 | 5012-4014 | 22,0 | 20,4 | 15 | 77 | 112 |
| 15 | 5012-4015 | 20,7 | 21,6 | 15 | 77 | 109 |
| 16 | 5012-4016 | 21,5 | 22,9 | 15 | 77 | 112 |
| 17 | 5012-4017 | 22,0 | 24,0 | 15 | 77 | 133 |
| 18 | 5012-4018 | 23,0 | 25,4 | 18 | 77 | 179 |
| 19 | 5012-4019 | 23,0 | 26,0 | 18 | 77 | 157 |
| 20 | 5012-4020 | 24,0 | 27,9 | 18 | 77 | 210 |
| 21 | 5012-4021 | 25,0 | 28,0 | 18 | 77 | 222 |
| 22 | 5012-4022 | 26,0 | 30,0 | 21 | 77 | 227 |
| 24 | 5012-4024 | 28,0 | 32,0 | 24 | 77 | 255 |
| 25 | 5012-4025 | 30,0 | 34,0 | 24 | 77 | 315 |
| 26 | 5012-4026 | 30,0 | 35,4 | 24 | 77 | 310 |
| 27 | 5012-4027 | 30,0 | 36,0 | 27 | 77 | 352 |
| 28 | 5012-4028 | 32,0 | 37,9 | 27 | 77 | 351 |
| 29 | 5012-4029 | 32,0 | 38,0 | 27 | 77 | 331 |
| 30 | 5012-4030 | 34,0 | 40,0 | 30 | 77 | 373 |
| 31 | 5012-4031 | 36,0 | 41,0 | 32 | 77 | 390 |
| 32 | 5012-4032 | 36,0 | 42,0 | 33 | 77 | 420 |
