1/2” 6-Kant piper i mm

ISO 2725-1, DIN 3124
Utførelse: Forkrommet og høyglanspolert. Materiale: Chrome-vanadium stål.

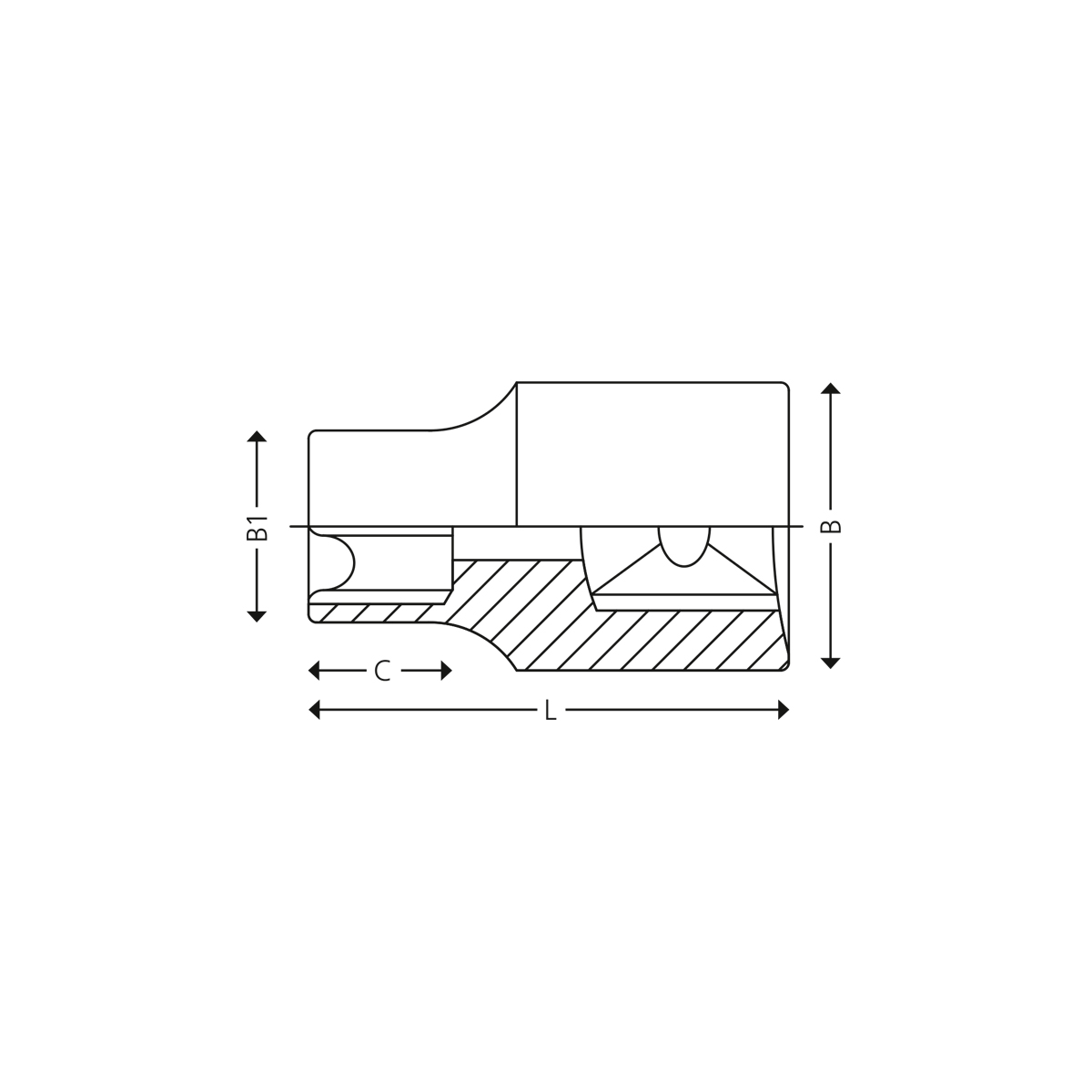

Str. mm	Vare nr.	B mm	B1 mm	C mm	L mm	Vekt (g)
10	5012-0010	21,8	15,0	12	38	49
11	5012-0011	21,8	16,3	12	38	50
12	5012-0012	21,8	17,6	12	38	50
13	5012-0013	21,8	18,8	12	38	51
14	5012-0014	21,8	20,4	12	38	53
15	5012-0015	20,7	21,6	12	38	54
16	5012-0016	21,5	22,9	12	38	61
17	5012-0017	22,0	24,0	12	38	68
18	5012-0018	23,0	25,4	12	38	85
19	5012-0019	23,0	26,0	14	38	73
20	5012-0020	24,0	27,9	14	38	86
21	5012-0021	25,0	28,0	14	38	82
22	5012-0022	26,0	30,0	14	40	106
23	5012-0023	27,0	31,6	14	40	125
24	5012-0024	28,0	32,0	16	42	121
27	5012-0027	30,0	36,0	18	43	168
30	5012-0030	34,0	40,0	22	46	225
32	5012-0032	36,0	42,0	22	46	255
8	5012-0008	21,8	13,2	12	38	47
9	5012-0009	21,8	13,9	12	38	47
25	5012-0025	30,0	34,0	16	42	150
26	5012-0026	30,0	35,4	16	42	170
28	5012-0028	32,0	37,9	18	43	193
29	5012-0029	32,0	38,0	20	43	205
34	5012-0034	37,0	43,9	22	46	255
36	5012-0036	37,8	47,9	22	46	274
